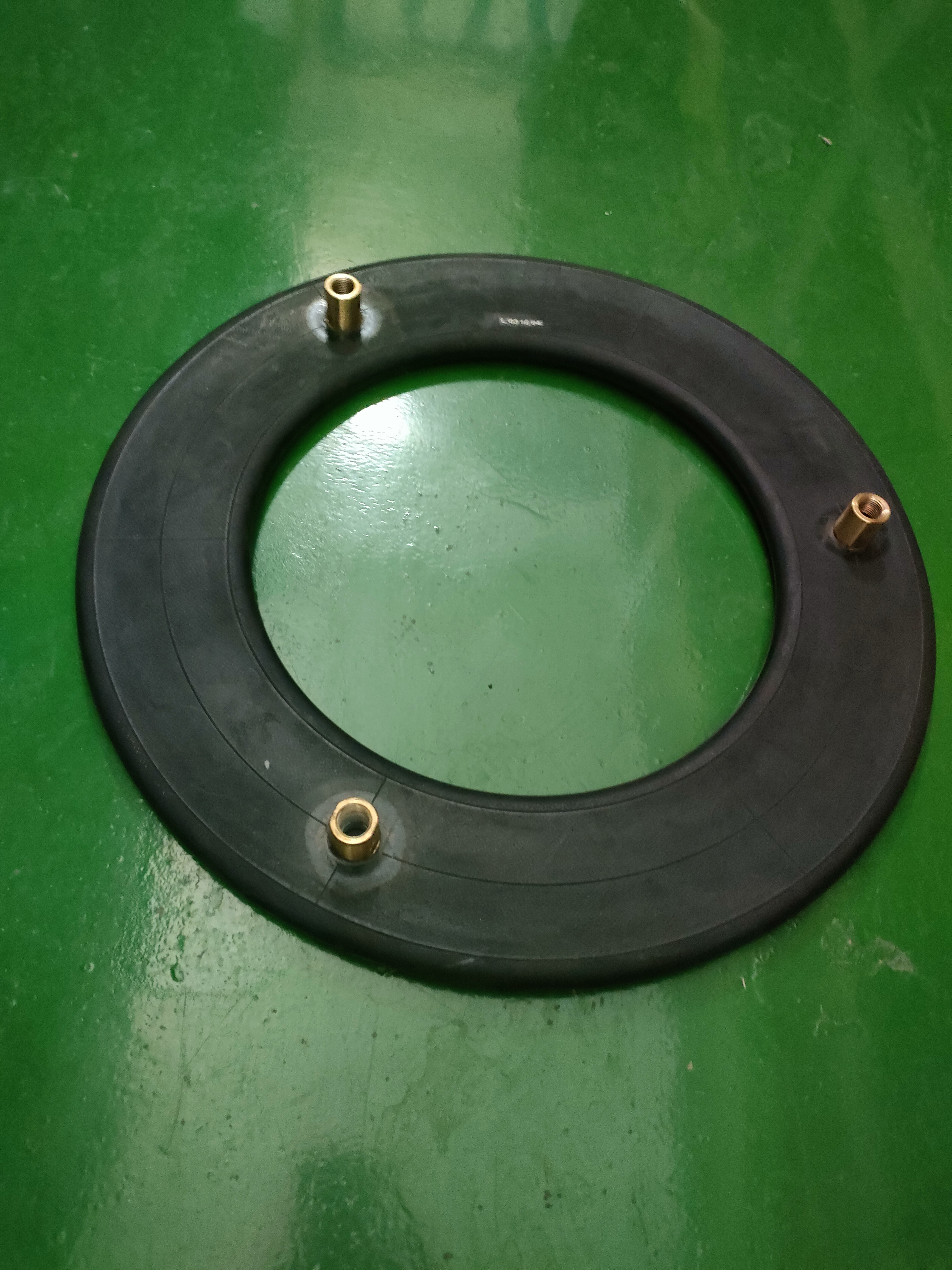

气胎
离合器用气胎，型号齐全，欢迎来电咨询。
| 气囊型号 Size |
长度L mm Length |
断面宽B mm |
厚度H mm Thickness |
气嘴数量Nozzle number |
气嘴内螺纹mm Nozzle internal thread |
气嘴高度mm Nozzle height bыcota |
| AVB500x200 | 1000 | 190 | 26 | 1 | G1/2" | 23 |
| AVB500x250 | 1031 | 246 | 26 | 2 | M20x1.5 | 25 |
| AVB600x250 | 1185 | 246 | 26 | 2 | G1/2" | 23 |
| AVB700x250 | 1365 | 246 | 26 | 2 | G1/2" | 23 |
| AVB800x250 | 1522 | 246 | 26 | 2 | G1/2" | 23 |
| AVB900x250 | 1700 | 246 | 26 | 2 | G1/2" | 23 |
| AVB500x200(长) | 2030 | 190 | 26 | 2 | G1/2" | 23 |
| AVB700x250(长) | 2720 | 246 | 30 | 2 | G1/2" | 23 |
| AVB1120x300 | 1985 | 290 | 26 | 2 | G1/2" | 27 |
| AVB1250x300 | 2186 | 285 | 26 | 2 | G1/2" | 27 |
| AVB1070x200 | 1990 | 222 | 38 | 2 | M33x1.5 | 27 |
| AVB1170x250 | 2142 | 264 | 35 | 2 | M33x1.5 | 27 |
| 隔膜DY 700x135 | Ф870xФ810x246 mm | |||||
| DiaphragmDY 700x135 | ||||||
| DY 700x135 | ||||||
| 隔膜945 | Ф945xФ496x32 mm | |||||
| Diaphragm945 | ||||||
| Diaphragm945 | ||||||
| 隔膜772 | Ф772xФ300x20mm | |||||
| Diaphragm772 | ||||||
| Diaphragm772 | ||||||
| 隔膜630 | Ф630xФ245x22 mm | |||||
| Diaphragm630 | ||||||
| Diaphragm630 | ||||||
